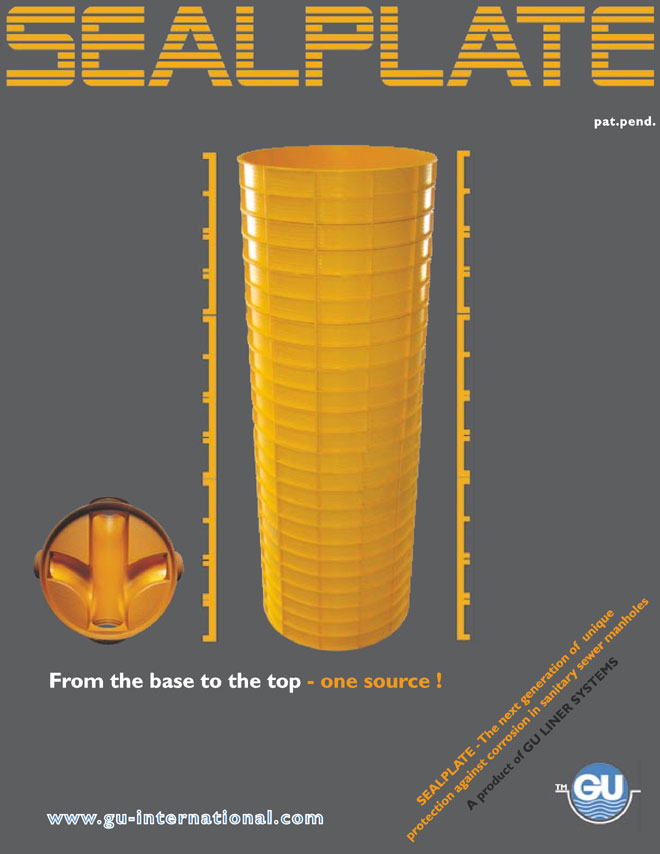

SEALPLATE
From the base to the top - one source!

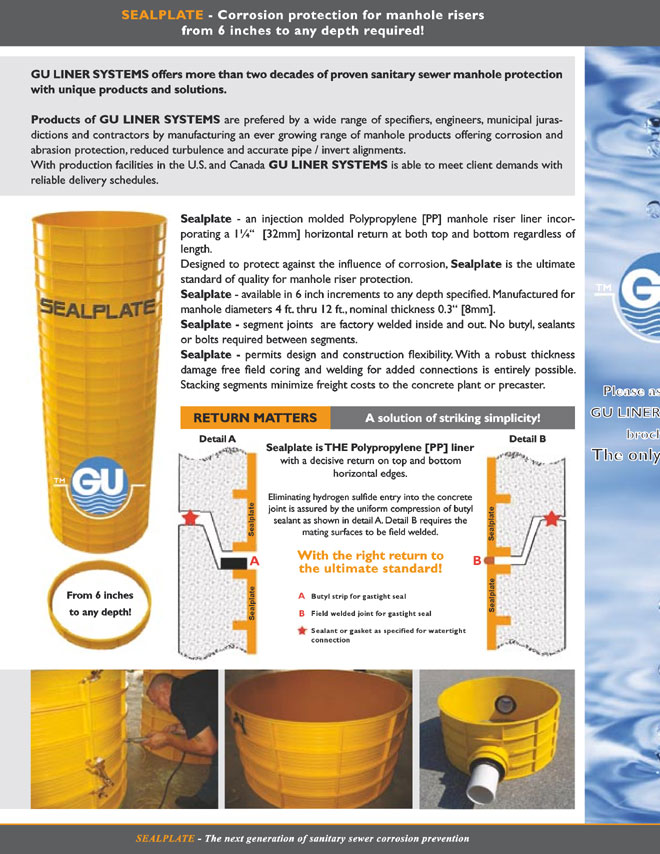

SEALPLATE
- Corrosion protection
for manhole risers
from 6 inches to any depth required! |
GU LINER SYSTEMS offers more than two decades of proven sanitary
sewer manhole protection with unique products and solutions.
Products of GU LINER SYSTEMS are prefered
by a wide range of specifi ers, engineers, municipal jurasdictions
and contractors by manufacturing an ever growing range of
manhole products offering corrosion and abrasion protection,
reduced turbulence and accurate pipe / invert alignments.
With production facilities in the U.S. and Canada GU
LINER SYSTEMS is able to meet client demands with
reliable delivery schedules. |
 |
Sealplate
- an injection molded Polypropylene [PP] manhole riser
liner incorporating a 11/4“ [32mm] horizontal return
at both top and bottom regardless of length.
Designed to protect against the infl uence of corrosion,
Sealplate is the ultimate standard
of quality for manhole riser protection.
Sealplate
- available in 6 inch increments to any depth specified.
Manufactured for manhole diameters 4 ft. thru 12 ft.,
nominal thickness 0.3“ [8mm].
Sealplate
- segment joints are factory welded inside and out.
No butyl, sealants or bolts required between segments.
Sealplate - permits design and construction
flexibility. With a robust thickness damage free fi
eld coring and welding for added connections is entirely
possible. Stacking segments minimize freight costs to
the concrete plant or precaster.
| RETURN
MATTERS |
A
Solution of striking
simplicity |
|
Sealplate is THE Polypropylene [PP] liner
with a decisive return on top and bottom
horizontal edges.
This assures the uniform compression of the butyl sealant,
placed between the mating surfaces. This simple feature
eliminates hydrogen sulphide entry into the concrecte
joint. Simple to work with in the fi eld too!
With the right
return to the ultimate standard!
Riser section joints
can also be easily welded
in the field. |
 |
|

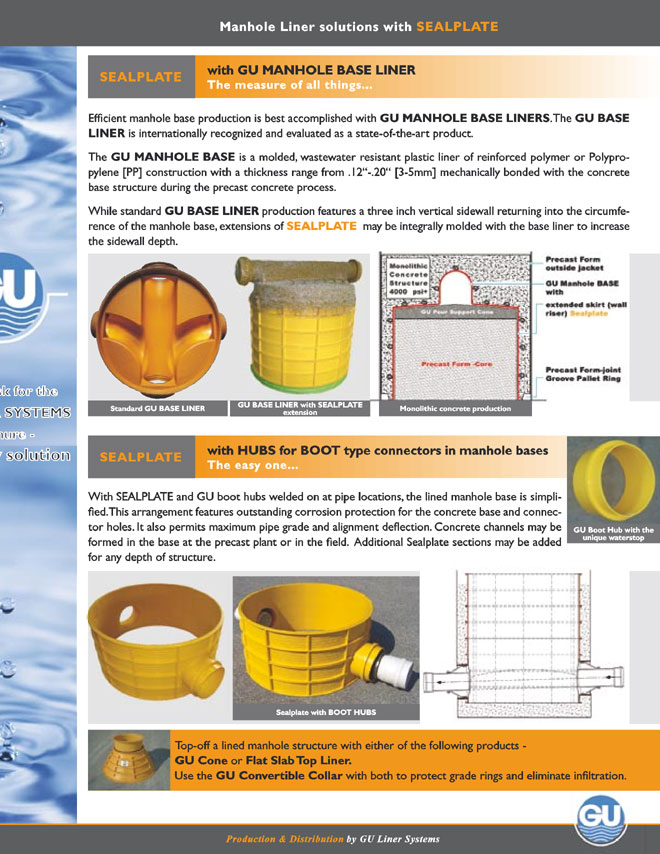

| Manhole
Liner solutions with SEALPLATE |
| Sealplate |
with
GU MANHOLE BASE LINER
The measure
of all things... |
Efficient manhole base production
is best accomplished with GU MANHOLE BASE LINERS.
The GU BASE LINER is internationally recognized
and evaluated as a state-of-the-art product.
The GU MANHOLE BASE is a molded, wastewater
resistant plastic liner of reinforced polymer or Polypropylene
[PP] construction with a thickness range from .12“-.20“
[3-5mm] mechanically bonded with the concrete base structure
during the precast concrete process.
While standard GU BASE LINER production features
a three inch vertical sidewall returning into the circumference
of the manhole base, extensions of
SEALPLATE
may be integrally molded with the base
liner to increase the sidewall depth.
| Sealplate |
with
GU MANHOLE BASE LINER
The measure
of all things... |
| With SEALPLATE and GU boot
hubs welded on at pipe locations, the lined manhole
base is simplifi ed. This arrangement features
outstanding corrosion protection for the concrete
base and connector holes. It also permits maximum
pipe grade and alignment defl ection. Concrete
channels may be formed in the base at the precast
plant or in the fi eld. Additional Sealplate sections
may be added for any depth of structure. |
|
|
 |
 |
Top-off a lined manhole structure
with either of the following products -
GU
Cone or Flat Slab Top Liner.
Use the GU Convertible Collar
with both to protect grade rings and eliminate
infiltration. |
|
 |
|
 |
| Production
& Distribution by GU Florida Inc. & Sealcon
Liner Systems Ltd. |
 |
|
