| IMPORTANT DESIGN FEATURE: | |

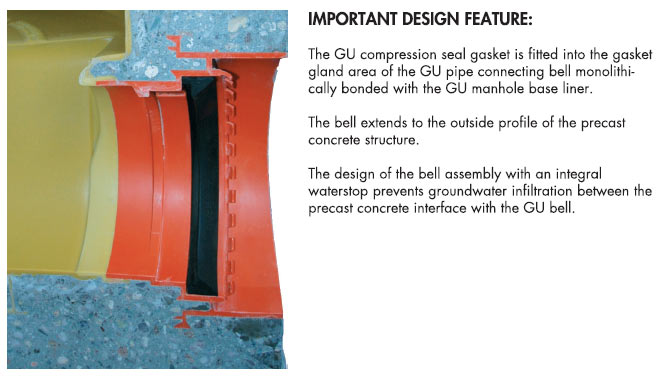

| The compression seal gasket is mounted in an integrally cast-in-place GU PIPE BELL Assembly which is monolithically bonded to the interior manhole liner and extends to the exterior profile of the precast concrete manhole. | The monolithic continuous bell sleeve liner assembly prevents ground water infiltration between the interface of the manhole liner and the precast concrete or around cast-in-concrete mounted gaskets not in continous bell sleeve assemblies. |
